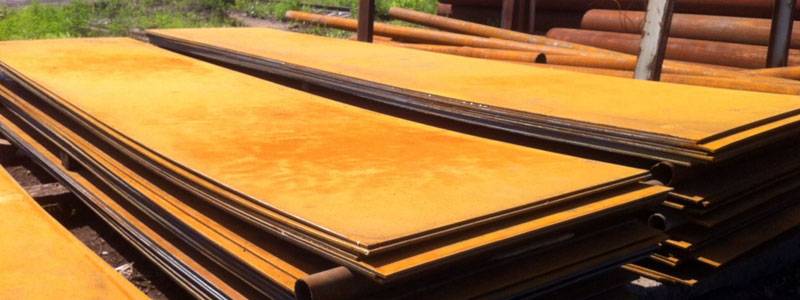

Champak Steel & Engg. Co is a renowned organization that is involved in fabricating and exporting the superior quality Rockstar 400 Plates. We use internationally approved and standard quality raw material for the fabrication of plates. Rockstar 400 is wear-resistant steel with the chemical composition of molybdenum, carbon, manganese, sulfur, chromium, silicon, phosphorous, nickel and boron. Based on the dimension and the application, the composition percentage of these contents is decided. This outstanding combination offers excellent toughness, formability and weldability. In order to achieve better weldability, we design Rockstar 400 Plates with low carbon equivalent. We are producing quenched, and tempered steel plate using pure quality Rockstar 400 and are supplied with thermally cutting edges. Our professionals perform different processes like cutting, forming, machining, testing, grinding etc. We are offering Rockstar 400 Plates for applications of crushes, buckets, dump trailers, hoppers, trash truck bottoms, street sweepers, chutes etc. These plates are highly resistant to corrosion, abrasion, pitting and crevice corrosion.
We Champak Steel & Engg. Co, as a customer-centric industry is providing Rockstar 400 Plates in several sizes, widths, standards and specifications. These plates are also available in customized specifications based on special demands. We ensure that our plates exactly meet all national and international quality standards and specifications. In order to maintain accuracy and quality, we precisely design Rockstar 400 Plates conforming set manufacturing norms. The plates are fabricated using advanced tools and machinery in our high class manufacturing firm. We are having a team of experienced professionals and skilled staff to produce a qualitative range of Rockstar 400 Plates at reasonable rates. These plates have unique features like robust structure, high strength, perfect accuracy, fine finish, higher durability and longer working life. Due to these properties make these plates a popular choice for a large number of industrial and engineering sectors. We are providing Rockstar Plates that easily withstand heavy loads and elevated temperatures.
Our company is supplying optimum quality, Rockstar 400 Plates that easily meet the diverse industrial requirements and manufacturing demands. In order to maintain the quality and performance of plates, the quality checking process is important for us. At our highly developed manufacturing unit, the testing of plates is performed for ensuring higher efficiency. The destructive and non-destructive tests conducted under the supervision of our experienced quality control team using automated facilities. Our entire team dedicatedly works towards bringing out the best quality Rockstar 400 Plates. All the essential attributes of plates is quickly checked throughout the manufacturing process.
Champak Steel & Engg. Co is supplying the finest quality Rockstar 400 Plates at a budget-friendly price to domestic as well as global industries. We hold years of experience and specialization in offering safe and timely deliveries of products. We provide all essential documents and reports at the time of shipping of plates. We maintain a considerable stock of Rockstar 400 Plates to supply well on time in case of urgent needs. These plates are appropriately packed using adequate packaging material for assuring damage-free and rust-free shipping.
Rockstar 400 Plates Specifications
Thickness : 6mm to 100mm
Width : 1,500mm to 2,500mm
Length : 6,000mm to 12,000mm
Production : Hot-Rolled (HR) / Cold-Rolled (CR)
Heat Treatment : N, Q+T
Surface Paint : EP, PE, HDP, SMP, PVDF
Chemical Composition of Rockstar 400 Plates
Plate Thickness | C | Mn | P | S | Si | Cr | Ni | Mo | B | CE | PCM |
---|---|---|---|---|---|---|---|---|---|---|---|
mm | Max % | Max % | Max % Max % Max % | Max % | Max % | Max % | Max % | Max | Max | ||
6.0 – 20.0 | 0.16 | 1.60 | 0.025 | 0.010 | 0.70 | 0.50 | 0.25 | 0.25 | 0.0040 | 0.45 | 0.28 |
21.0 – 32.0 | 0.18 | 1.60 | 0.025 | 0.010 | 0.70 | 1.00 | 0.25 | 0.25 | 0.0040 | 0.48 | 0.29 |
32.1 – 50.0 | 0.22 | 1.60 | 0.025 | 0.010 | 0.70 | 1.40 | 0.50 | 0.60 | 0.0040 | 0.57 | 0.33 |
50.1 – 75.0 | 0.22 | 1.60 | 0.025 | 0.010 | 0.70 | 1.40 | 0.50 | 0.60 | 0.0040 | 0.65 | 0.40 |
Mechanical Properties Of Rockstar 400 Plates & Sheets
Hardness | 360-430 BHN (On a milled surface 0.5-2 mm below the plate surface) | |||
---|---|---|---|---|
Yield Strength (MPa) | Tensile Strength (MPa) | % Elongation | Impact at -30°C | |
(L0=50 mm) | (In Joules) | |||
Typical values for 20 mm | 1000 | 1250 | 12 | 40 |
Rockstar 400 Plates Application Industries
Our Rockstar 400 Plates are used in a wide range of applications and various industries. Below are a few of them:
Conveyor Buckets
Drag line Bucket Wear Liners
Dump Truck Liners
Cutting Edges
Crusher Liner Plates
Screen Plates - Chute Liners
Ripper Tyne
Loading Buckets
Bulldozers
Hoppers
Champak Steel and Engg. Co. is one of the leading manufacturer and supplier of Rockstar 400, Rockstar 400 Plates, Abrasion/Wear Resistant Steel Plates Rockstar 400, Rockstar 400 Steel Plate at the best price in India.
